Area 419 Hellfire Self-Timing Muzzle Brake 6.5mm Black Nitride 5/8-24

The Area 419 Hellfire is a self-timing muzzle brake chambered for 6.5mm, suitable for any bullet caliber up to and including 0.264" (6.5mm), including magnums. This configuration features a black nitride finish and a 5/8-24 thread pitch. The brake is made from heat-treated 17-4PH stainless steel and is manufactured in NW Ohio on CNC machines. It is 100% Made in the USA.

Self-Timing Design

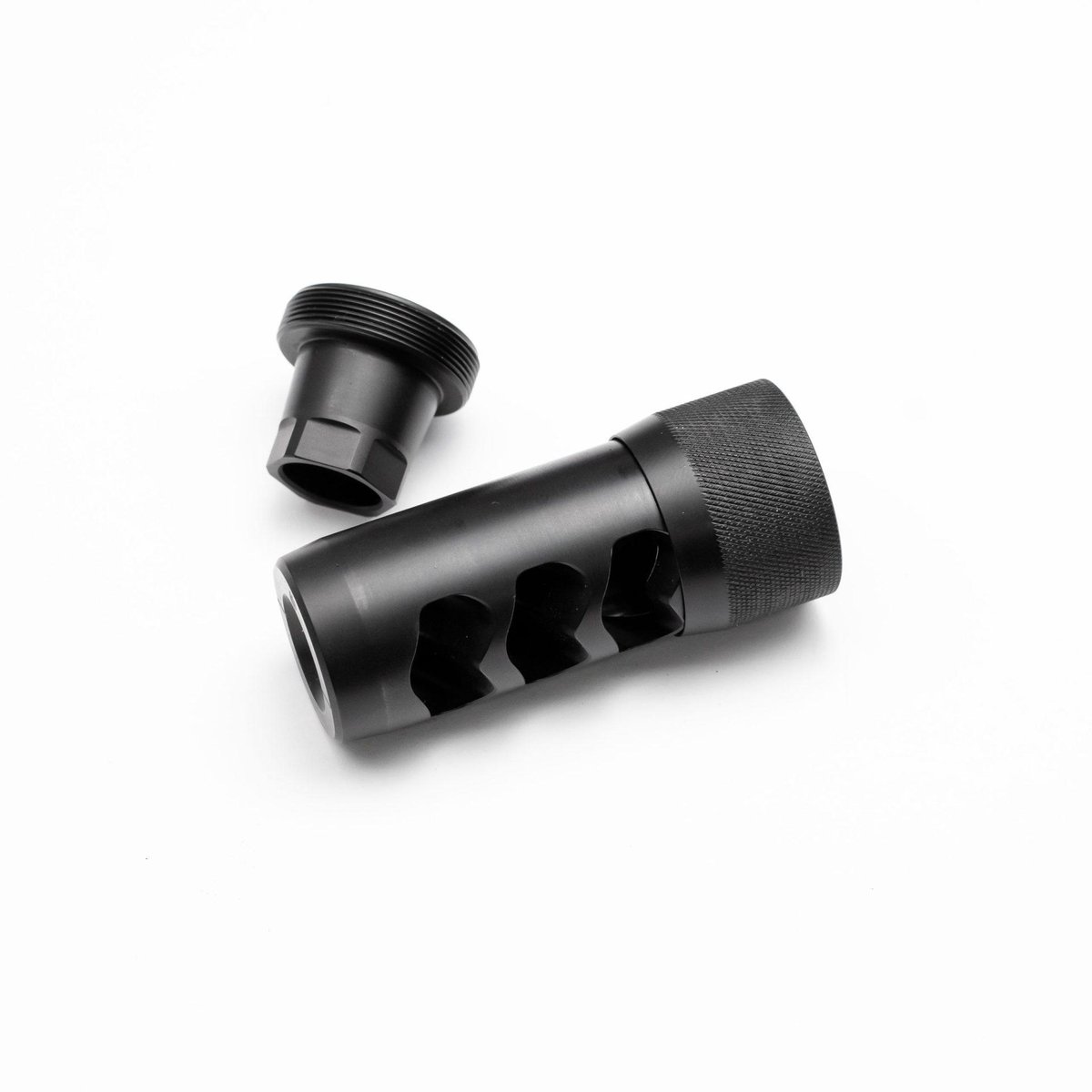

The Hellfire uses a universal adapter system that threads onto the barrel with a 5/8" wrench and never needs to be removed. The brake and collar assembly features left-hand threads onto the adapter. Once nearly snug, the brake is rotated to the desired orientation, pressed into the adapter to engage the taper lock, and the collar is tightened by hand. No tools are required to time the brake. The design is intended so the brake will not rotate during collar torquing, eliminating the need to guess final port orientation before locking down.

Key Features

• Caliber: Up to and including 0.264" (6.5mm); magnums compatible
• Thread pitch: 5/8-24
• Finish: Black nitride
• Material: Heat-treated 17-4PH stainless steel
• Rearward-facing port design
• Proprietary port design controls muzzle rise without top porting
• Face of brake engraved with caliber to indicate top orientation; horizontal line aids leveling
• Brake OD: 1"; collar OD: 1.1"
• Adds 2.6" from the thread shoulder (approximately 2" added to overall barrel length)
• Weight: 4.8 oz (5/8-24 6.5mm configuration)
• Return to zero: brake can be removed and reinstalled without requiring a zero change
• Simple round knurled nut; no tools required for timing
• Manufactured in NW Ohio, USA

Area 419 states the Hellfire demonstrated 52% recoil reduction on a 6.5 Creedmoor test rifle in independent side-by-side testing. The proprietary port design manages muzzle rise without the use of top porting. The universal adapter is finished in black regardless of brake finish selected.
