Area 419 Hellfire Self-Timing Muzzle Brake 7mm/.30 Cal Black Nitride 5/8-24

The Area 419 Hellfire Self-Timing Muzzle Brake is a 7mm/.30 caliber muzzle brake with a Black Nitride finish, threaded 5/8-24, and manufactured from heat-treated 17-4PH stainless steel in NW Ohio. It is compatible with bullet calibers up to and including .308, including 7mm, .284, and .270, with magnum calibers supported.

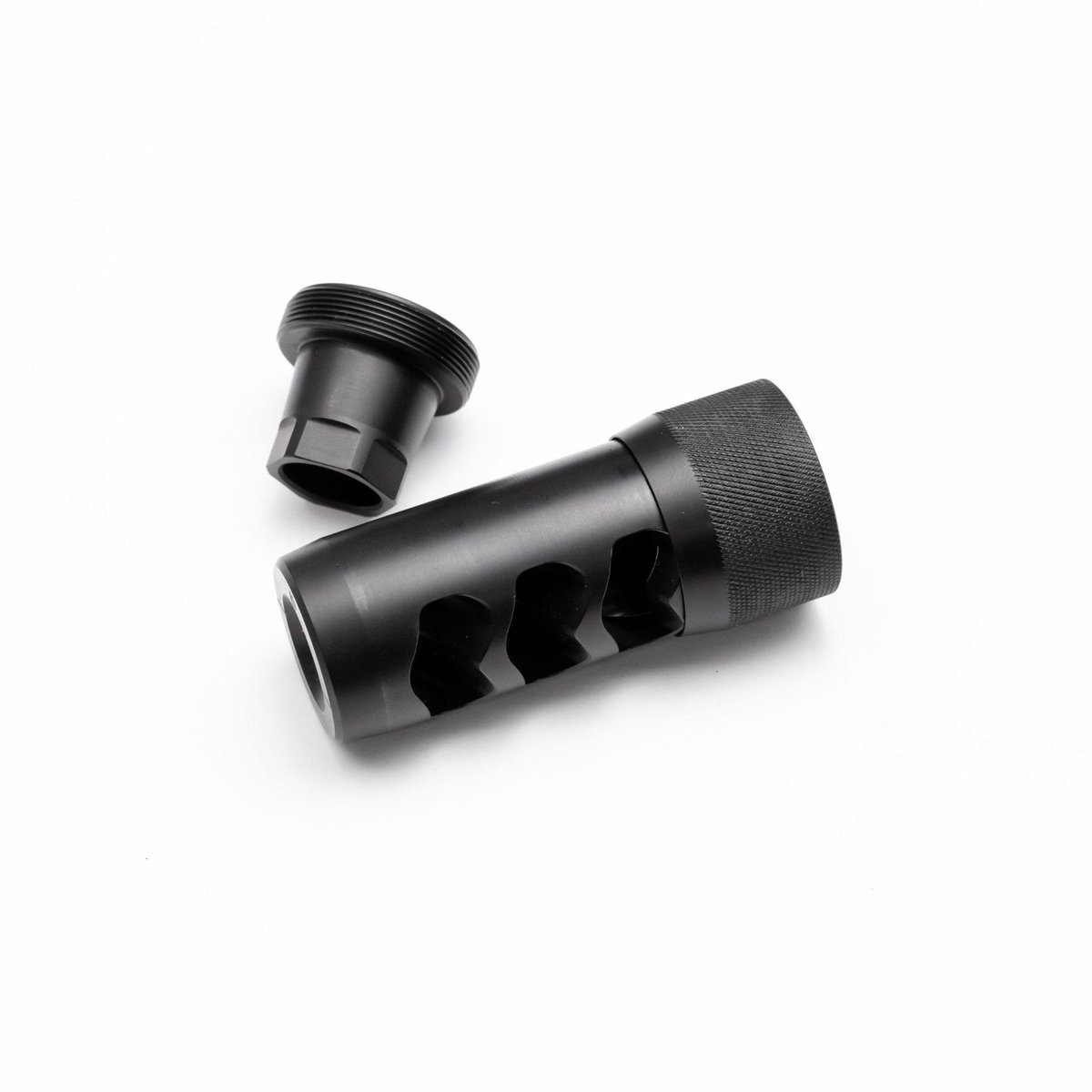

The Hellfire uses a self-timing system that eliminates the need to predict port orientation during installation. A universal adapter is torqued onto the barrel using a 5/8-inch wrench and does not need to be removed after initial installation. The brake and collar assembly threads onto the adapter using left-hand threads, allowing the brake to be rotated to a level position before locking onto an internal taper. The knurled collar is then tightened by hand with no tools required. Area 419 states that return-to-zero is maintained through removal and reinstallation.

The brake features rearward-facing ports and a proprietary port design that Area 419 states controls muzzle rise without top porting. Area 419 reports 52% recoil reduction on a 6.5 Creedmoor test rifle based on independent testing. The face of the brake is engraved with the caliber designation to indicate correct orientation and includes a horizontal reference line to assist with leveling.

Key Features

• Compatible with bullet calibers up to and including .308 (7mm, .284, .270, magnums supported)
• 5/8-24 thread pitch
• Black Nitride finish over heat-treated 17-4PH stainless steel construction
• Self-timing system with left-hand threaded collar — no tools required for timing
• Rearward-facing ports with proprietary port design; no top porting
• Area 419 reports 52% recoil reduction on a 6.5 Creedmoor test rifle
• 1-inch OD brake; 1.1-inch OD collar
• Adds approximately 2.6 inches from the thread shoulder (approximately 2 inches to overall barrel length)
• Caliber engraving on brake face for orientation; horizontal leveling reference line included
• 100% made in the USA

Available from ICB Firearms with fast nationwide shipping. Local pickup is also available at our Saint Clair Shores, Michigan location.
