Area 419 Sidewinder Magnum Self-Timing Muzzle Brake .338 Cal Black Nitride 3/4-24

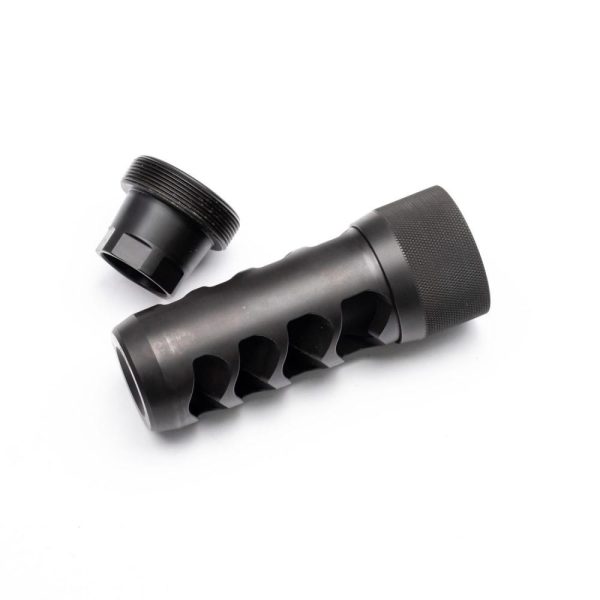

The Area 419 Sidewinder Magnum is a self-timing muzzle brake chambered for .338 caliber with a 3/4-24 thread pitch, finished in Black Nitride. It is manufactured from heat-treated 17-4PH stainless steel and made in the USA on CNC machines in NW Ohio.

The Sidewinder's self-timing system is designed so the brake will not rotate as the collar is torqued down. A universal adapter threads onto the barrel using a 13/16" wrench and can remain in place permanently. The brake and collar assembly then threads onto the adapter using left-hand threads. Once the brake is rotated to the desired orientation and pushed into the adapter, it locks onto a taper, and the collar is tightened by hand with a round knurled nut that requires no tools. Area 419 states that return to zero is excellent, meaning removal and reinstallation do not require a zero change.

Key Features

• Self-timing design — brake will not rotate during collar torque
• Rearward-facing ports with proprietary progressive port design
• Proprietary port design controls muzzle rise without top porting
• Progressive port sizing — first port is largest, decreasing toward the muzzle end to manage overall length</n
• One additional port and larger diameter compared to the Area 419 Hellfire brake
• Face of brake engraved with caliber designation and a horizontal reference line for leveling
• Made from heat-treated 17-4PH stainless steel with Black Nitride finish
• 1.125" OD brake / 1.275" OD collar
• 3.35" length — adds approximately 2.75" to barrel length
• Combined weight of brake and adapter: 7.5 oz
• Universal adapter included; installs with a 13/16" wrench
• 100% Made in USA

Area 419 notes that the Sidewinder is modeled after their Hellfire brake. The Hellfire was independently tested and showed 52% recoil reduction on a 6.5 Creedmoor test rifle. Area 419 states the Sidewinder has one more port and a larger diameter than the Hellfire.
