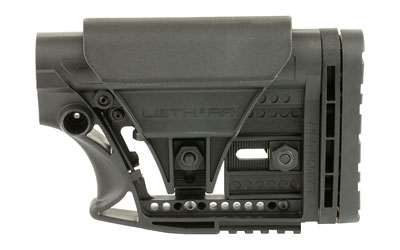

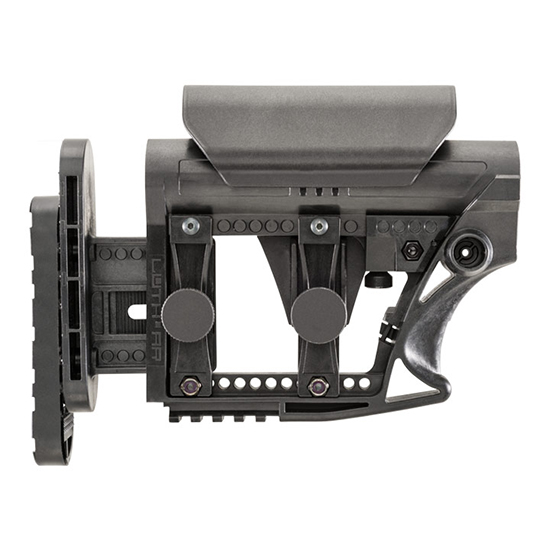

The Luth-AR MBA-3 is a fully adjustable carbine buttstock assembly designed to mount on mil-spec or commercial buffer tubes, using 4 of the 6 available positions. The MBA-3 is compatible with all .223 and most .308 AR carbine-style rifles. It is not compatible with A2 standard buffer tubes, and is not designed for use with large-bore calibers such as .338 Lapua or .50 BMG.
3-Axis Adjustable Butt Plate
The butt plate assembly provides three axes of adjustment and extends an additional 1-1/16 inches of length of pull beyond the stock body:
Horizontal: Linear adjustment for length of pull
Vertical: Adjusts butt plate fit to the curvature of the shoulder
Lateral: Up to 1/2 inch left or right cast
The butt plate assembly is interchangeable with the original MBA-1 buttstock. The black MBA-3 includes a medium soft rubber recoil pad (Duro 85).
Key Features
Fits mil-spec and commercial buffer tubes; uses 4 of 6 positions
Additional 1-inch cheek rest height
Picatinny rail on the bottom rear of the stock body for accessory attachment
Flat-bottom index set screw (10-24) to secure the stock in position and eliminate rattle
Glass-filled nylon construction
Weighs approximately 18.5 ounces
Vertical struts are fixed; cheek piece is not reversible, but is designed with a cheek pad for left-handed use
Note: commercial buffer tubes exceeding 1.172 inches in diameter may not fit
Not compatible with A2 standard buffer tubes
Not designed for large-bore calibers such as .338 Lapua or .50 BMG
ICB Firearms carries the Luth-AR MBA-3 in black, with local pickup available in Saint Clair Shores, Michigan and fast shipping nationwide.
